Home Assistant

Home Assistant is a full‑stack, open‑source platform for home automation that runs on any self‑hosted environment—Raspberry Pi, Docker host, or cloud VM. At its core it aggregates data from thousands of IoT protocols (Zigbee, Z‑Wave, Matter, MQTT, BLE, etc.) and exposes a unified state machine that can be queried or driven by rules, scripts, and third‑party integrations. The application is written in Python 3 and uses the asyncio event loop to handle thousands of concurrent device events with low latency, making it suitable for real‑time control and sensor fusion.

Architecture

• Core Engine – A single‑process Python application that parses YAML configuration files (configuration.yaml, automations.yaml, etc.) and builds an in‑memory entity registry. It communicates with external devices via protocol adapters that run as separate async tasks.
• Database – Home Assistant ships with an embedded sqlite database for quick local storage of state history, but supports PostgreSQL or MySQL/MariaDB for production workloads. The data model is a time‑series store that can be queried via the RESTful /api/states endpoint or the newer state_machine.

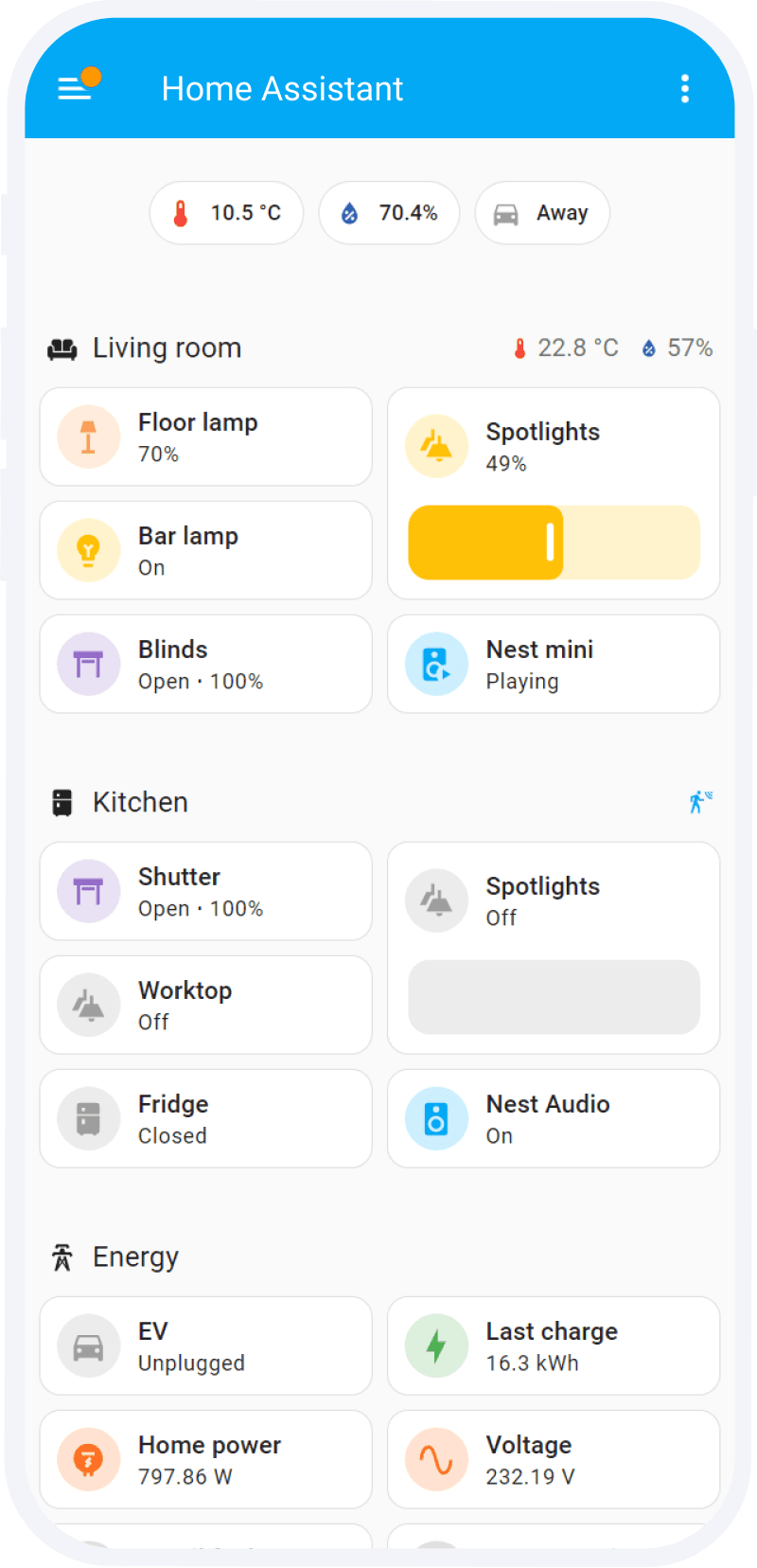

• Web UI – The Lovelace dashboard is a client‑side SPA written in Vue.js, communicating with the backend through a secure WebSocket (/api/websocket). Custom cards can be written in JavaScript and injected into the UI.
• Service Layer – Exposes a REST API (/api/services) and a WebSocket event stream. Developers can invoke services (e.g., light.turn_on) or listen for state changes in real time.
• Integration Plug‑in System – Each protocol adapter is a Python package that implements the homeassistant.components.<name> interface. New integrations are published to PyPI and can be installed via the UI.

Core Capabilities

• Event‑driven automation – Declarative YAML automations that trigger on state changes, time, or custom events. Advanced developers can write Python scripts (script.python_script) to extend logic.
• Template rendering – Jinja2‑based templating for dynamic state evaluation, accessible in automations, scripts, and Lovelace cards.
• Webhooks & HTTP endpoints – webhook/<id> allows external services to trigger automations, while the /api/states endpoint can be polled or pushed via MQTT.
• OAuth2 & JWT – Secure authentication for the REST API, enabling integration with mobile apps or custom dashboards.
• Matter & Thread support – Native Matter server (homeassistant.components.matter) that can act as a coordinator, allowing direct device onboarding without external hubs.

Deployment & Infrastructure

• Containerization – Official Docker images (homeassistant/home-assistant) are available for all major platforms. The image exposes a single port (8123) and can be run with Docker Compose or Kubernetes via the homeassistant Helm chart.
• Scalability – While the core runs in a single process, it can be horizontally scaled by running multiple instances behind a reverse proxy that balances WebSocket connections. State replication is handled via an external database.
• Self‑Hosting Requirements – Minimum: 2 GB RAM, 1 GHz CPU; recommended for full sensor suites. Supports ARM64 (Raspberry Pi) and x86_64 architectures.
• Backup & Restore – Configuration is version‑controlled in YAML; the database can be exported with hassio snapshot or custom scripts.

Integration & Extensibility

• Python SDK – The homeassistant package can be imported into custom Python scripts or third‑party apps to programmatically control entities.
• Custom Components – Developers can ship reusable integrations as Python packages that register new platforms, services, or entities. The component lifecycle is fully documented.
• API Hooks – WebSocket events (state_changed, event) and REST callbacks allow real‑time monitoring. External services can listen via MQTT or HTTP.
• UI Customization – Lovelace cards are composable; developers can create custom card libraries (custom:my-card) that expose configuration via UI schema.

Developer Experience

• Documentation – The official docs are exhaustive, with a dedicated “Developer” section covering component development, testing utilities (hassfest), and the architecture guide.
• Community – Active forums, Discord, and GitHub discussions provide rapid support. The project follows semantic versioning and maintains a transparent roadmap.
• Testing Framework – hassfest enables unit testing of integrations with mock devices, and continuous integration pipelines are available for contributors.

Use Cases

1. Enterprise Smart Building – Deploy Home Assistant on a local server to unify HVAC, lighting, and access control systems, exposing a single REST API for building management software.
2. Custom Voice Assistant – Combine the Matter server with Alexa/Google integration to build a private voice‑controlled hub without cloud dependency.
3. Edge IoT Gateway – Run on a Raspberry Pi to collect sensor data (temperature, humidity, motion) and forward aggregated metrics to an external analytics platform via MQTT or HTTP.
4. Prototyping Automation Logic – Use the Python scripting engine to test complex rule sets before migrating them to a production controller.

Advantages

• Open‑Source & Non‑Profit – No licensing fees and a community‑driven roadmap ensure long‑term stability.
• Protocol Agnostic – Native support for Zigbee
