Tyk

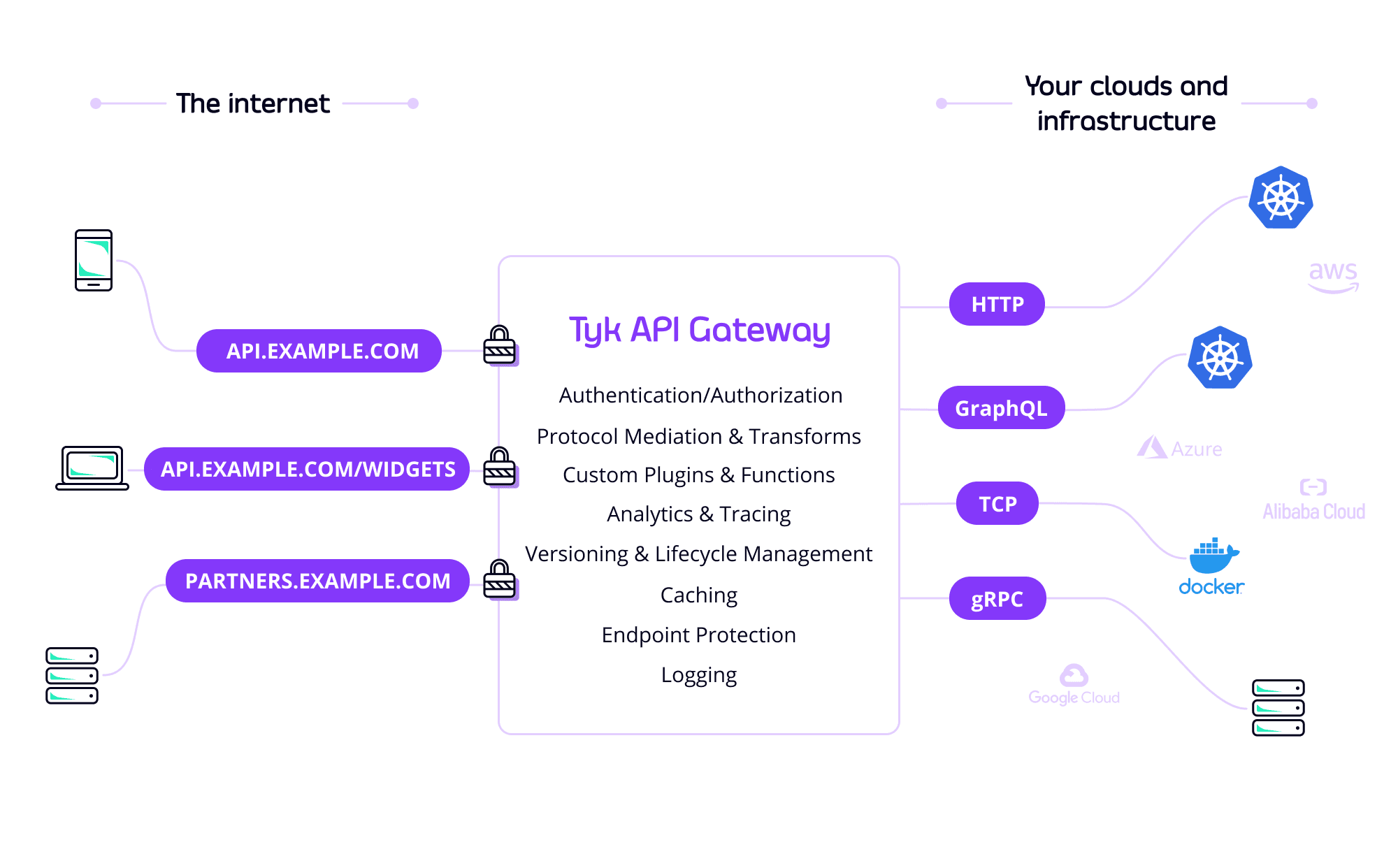

Tyk is a cloud‑native, open‑source API management platform that functions as an enterprise‑ready gateway and control plane. From a developer’s perspective, it offers a unified entry point for REST, GraphQL, TCP, and gRPC services while exposing a rich set of policy hooks, analytics, and developer portal capabilities. The core gateway is written in Go, giving it low‑latency routing and a minimal memory footprint, which is why Tyk consistently tops performance benchmarks for API gateways. The control plane and dashboard are built with Node.js/React, providing a responsive UI for policy configuration, analytics dashboards, and API lifecycle management.

Architecture

• Gateway – a single‑binary Go application that runs as a sidecar or standalone instance. It can be deployed on bare metal, Docker containers, or Kubernetes pods, and it natively supports the Tyk Operator for declarative management on clusters.
• Control Plane – a lightweight Node.js service that stores metadata in a NoSQL database (MongoDB or PostgreSQL). It exposes RESTful endpoints for CRUD operations on APIs, policies, and users, as well as WebSocket streams for real‑time analytics.
• Data Store – Tyk can use a variety of backends: MongoDB, PostgreSQL, MySQL, or even an embedded BoltDB for lightweight setups. The gateway reads its runtime configuration from the control plane over a secure gRPC channel.
• Plugins & Extensions – The gateway supports Lua, Go, and JavaScript plugins. These run in sandboxed environments and can intercept requests/responses, modify headers, or inject custom logic. The plugin system is exposed via a plugins directory and can be versioned per API.

Core Capabilities

• Policy Engine – rate limiting, quota enforcement, IP whitelisting/blacklisting, JWT/OAuth2 authentication, and request validation are all configurable via declarative JSON/YAML objects.
• Analytics – real‑time metrics (latency, throughput) are streamed to the dashboard and can be exported to Prometheus, Grafana, or Elastic Stack.
• API Lifecycle – versioning, deprecation, and staged rollout are handled through the control plane. Gateways can automatically reload configuration without downtime.
• Developer Portal – self‑service portal for API keys, documentation (Swagger/OpenAPI), and usage quotas.
• AI‑Ready Features – built‑in LLM safety policies, request/response transformation for AI pipelines, and integration hooks for AI services.

Deployment & Infrastructure

• Containerization – Official Docker images (tykio/tyk-gateway) are available on Docker Hub; the gateway image is a minimal Alpine build with optional plugins pre‑installed.
• Kubernetes – Tyk Operator manages CRDs for APIs, policies, and plugins. Horizontal Pod Autoscaling can be enabled via the gateway’s Prometheus metrics.
• Scalability – The stateless Go gateway can be scaled horizontally behind a load balancer. Configuration is reloaded over gRPC, so all instances stay in sync without full restarts.
• High Availability – Multiple control plane replicas can run behind a load balancer, with MongoDB or PostgreSQL providing replication. The gateway itself is resilient to node failures thanks to its stateless design.

Integration & Extensibility

• Plugin API – Developers can write custom logic in Lua or Go, deploy as a shared library (.so) or a Docker sidecar, and expose it via the gateway’s policy hooks.
• Webhooks & SDKs – The control plane exposes a comprehensive REST API; SDKs are available for Go, Node.js, and Python. Webhooks can be triggered on API events (e.g., key creation, policy changes).
• External Identity Providers – OAuth2/OIDC support allows integration with Keycloak, Auth0, or custom SSO solutions.
• Observability – Metrics can be scraped by Prometheus; logs are JSON‑structured and forwardable to ELK or Loki stacks.

Developer Experience

• Configuration – APIs, policies, and plugins are defined in JSON/YAML files that can be versioned in Git. The gateway supports live reload, so changes take effect within seconds.
• Documentation – Comprehensive docs are hosted at https://tyk.io/docs/, with a dedicated API reference, tutorial series, and best‑practice guides. The community forum is active for troubleshooting.
• Testing – CI pipelines run unit and integration tests against the gateway codebase; contributors can submit plugins via pull requests.
• Community & Licensing – Licensed under MPL 2.0, Tyk has a vibrant open‑source community and an enterprise edition for advanced features like RBAC, SSO, and dedicated support.

Use Cases

1. Microservice Mesh – Route traffic between services, enforce per‑service quotas, and expose a single developer portal for internal APIs.
2. Legacy API Modernization – Wrap older REST or gRPC services with rate limiting, OAuth2, and analytics without code changes.
3. AI Infrastructure – Gate LLM calls with safety policies, monitor usage per model, and expose a secure AI portal to developers.
4. Hybrid Cloud – Run the gateway on-premises while managing APIs from a cloud‑hosted control plane, enabling consistent policy enforcement across environments.

Advantages

• Performance – Go‑based gateway offers sub
