openHAB

openHAB is a vendor‑agnostic, open‑source automation framework that runs entirely on your local infrastructure. At its core it is a modular Java application built atop the OSGi runtime, which allows developers to compose a highly customized home‑automation stack from thousands of pre‑built bundles. The framework exposes a unified “things” abstraction that represents any device or service, whether it is a Zigbee sensor, an MQTT broker, or a RESTful API. By decoupling device drivers from the rule engine, openHAB enables rapid prototyping and long‑term maintainability for complex IoT deployments.

Key Features

• Pluggable Architecture – Each protocol (Zigbee, KNX, HTTP, etc.) is implemented as an OSGi bundle that can be added or removed at runtime. This makes it trivial to swap out a driver without touching the rule logic.
• Rule Engine – A powerful, event‑driven engine written in Java and Groovy allows developers to define time‑based triggers, state changes, or scriptable actions. The DSL supports inline scripting and external Java classes.
• Unified Data Model – All devices expose items that can be bound to UI widgets, voice assistants, or external services. Items are typed (Number, Switch, String) and can carry metadata for validation.
• Web & Mobile APIs – A RESTful API, WebSocket feeds, and a modular UI framework (HABPanel) provide rich interaction surfaces for custom dashboards or third‑party integrations.

Technical Stack

The core is distributed as a set of JAR bundles that are automatically resolved by the Equinox framework. Each bundle declares dependencies in its META-INF/MANIFEST.MF, allowing fine‑grained version control and dependency isolation. The modularity also aids in continuous integration, as each bundle can be built and tested independently.

Deployment & Infrastructure

openHAB is intentionally lightweight, running on any JVM‑capable platform: Linux, macOS, Windows, ARM boards, and NAS devices. Docker images are available for quick deployment; the official image exposes a single openhab user with limited privileges, ensuring security best practices. For scalability, the framework can be clustered via shared persistence (e.g., PostgreSQL) and load‑balanced using reverse proxies. Although designed for single‑node use, advanced users can spin up multiple instances and synchronize via the Cloud Connector or custom MQTT topics.

Integration & Extensibility

The plugin ecosystem is one of openHAB’s strongest points. Developers can write new “thing” adapters as OSGi bundles, publish them to the openHAB Exchange, or consume external services through HTTP/REST adapters. Webhooks and MQTT topics allow integration with SaaS platforms, while the Java API exposes the full rule engine for embedding into larger applications. The openHAB DSL can be extended with custom functions, and the rule engine supports native Java classes for performance‑critical logic.

Developer Experience

Documentation is comprehensive, with a dedicated developer guide that walks through architecture, bundle development, and testing. The community is active on GitHub, Discord, and mailing lists, providing rapid feedback for pull requests. The use of standard Maven conventions and Java tooling (IntelliJ, Eclipse) keeps the learning curve modest for seasoned Java developers. Licensing under EPL‑2.0 allows commercial use without royalties, which is a significant advantage for enterprise deployments.

Use Cases

1. Home Automation Hub – Centralized control of Zigbee, Z‑Wave, and Wi‑Fi devices with custom rules for lighting, HVAC, and security.

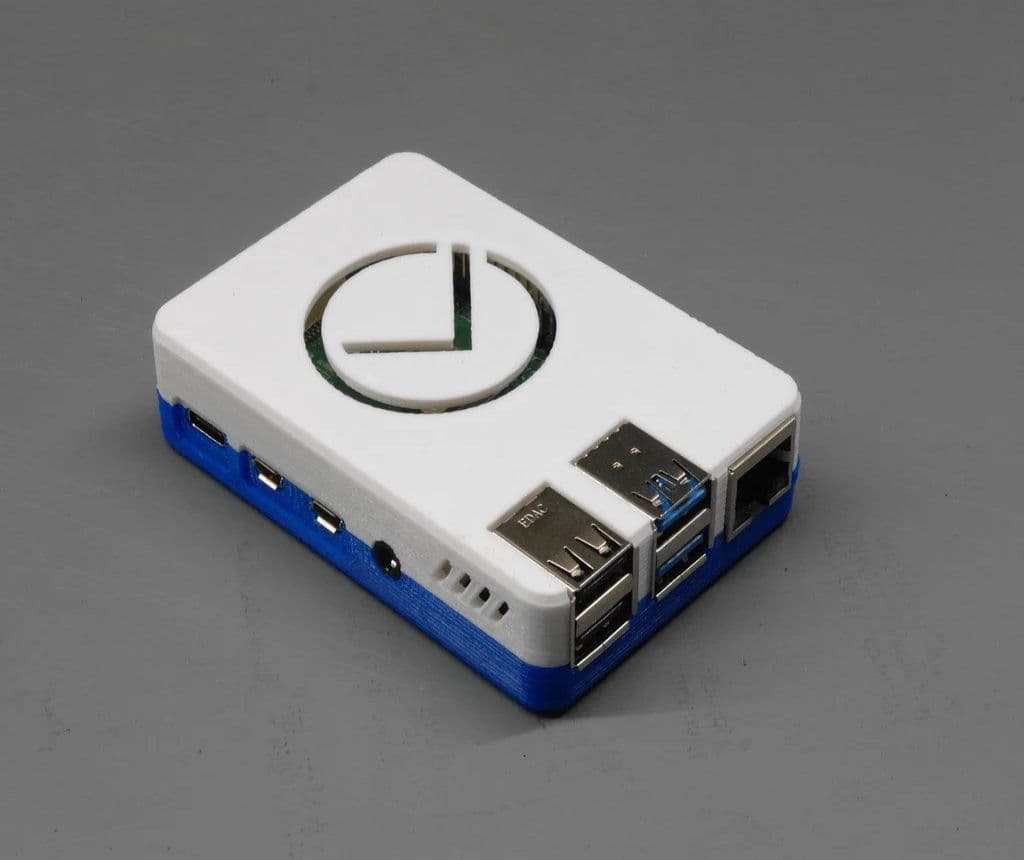

2. Edge IoT Gateway – Deploy on a Raspberry Pi to collect sensor data, run preprocessing rules locally, and forward aggregated metrics to cloud analytics.
3. Enterprise Building Management – Scale out with clustered instances, integrate with building‑management protocols (BACnet), and expose dashboards via HABPanel.
4. Voice Assistant Integration – Connect to Alexa, Google Assistant, or HomeKit through the Cloud Connector while keeping all data on premises.

Advantages

• Performance & Responsiveness – Native Java execution and OSGi’s hot‑swap capabilities deliver low latency for real‑time event handling.
• Flexibility – The modular bundle system allows developers to tailor the stack precisely, dropping unused adapters to conserve resources.
• Privacy & Control – No mandatory cloud dependency; all data remains on the local network unless explicitly forwarded.
• Licensing – EPL‑2.0 permits commercial use without fees, unlike some proprietary IoT platforms.
• Ecosystem Breadth – With support for 400+ technologies, developers rarely need to write custom drivers from scratch.

In summary, openHAB offers a robust, extensible foundation for building sophisticated IoT solutions while keeping the deployment fully under developer control. Its Java/OSGi backbone, combined with a rich rule engine and extensive integration options, makes it an attractive choice for both hobbyists and enterprise architects looking to maintain ownership of their smart‑home data.
